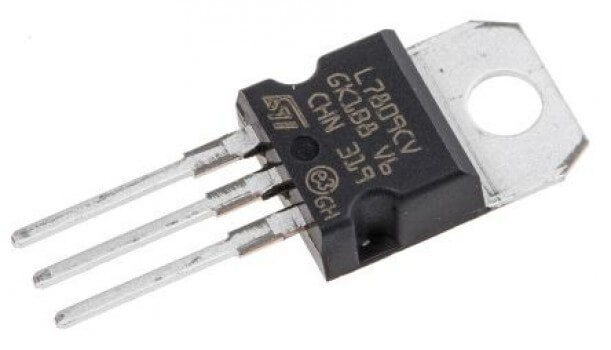

LM7809 / 7809 Voltage Regulator in Pakistan

LM7809 / 7809 Voltage Regulator is a fixed-voltage integrated-circuit voltage regulator designed for a wide range of applications. The L7809 voltage regulator provides 9V Positive voltage as output and can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. Although designed primarily as a fixed voltage regulator, but it can be used with external components to obtain adjustable voltage. LM7809 Pinout Configuration Pin Number Pin Name Description 1 Input (V ) Unregulated Input Voltage 2 Ground Connected to Ground 3 Output (Vo) Outputs Regulated 9V   LM7809 / 7809 Voltage Regulator Features: 9V Positive Voltage Regulator Minimum Input Voltage is 11V Maximum Input Voltage is 35V Output Current: 1.5 A PSRR / Ripple Rejection: 55 dB Output Type: Fixed Internal Thermal Overload and Short circuit current limiting protection is available. Junction Temperature maximum of 125 degree Celsius Available in TO-220, TO-3 and KTE package   Note: Complete Technical Details can be found in the 7809 datasheet given at the end of this page. L7809 Voltage Regulator Equivalent LM7806, LM7824, LM7815, LM7812, LM317, LM7905, LM7912. Brief Description of 7809 Voltage Regulator IC Voltage regulators are very common in electronic circuits. They also provide a constant output voltage for a varied input voltage. The name 7809 signifies two meanings, “78” means that it is a positive voltage regulator and “09” means that it provides 09V as output. Moreover, The output current of this IC can go up to 1.5A. But the IC suffers from heavy heat loss hence a Heat sink is recommended for projects that consume more current. L7809 as 9V Voltage Regulator This is a typical application circuit of the 7809 IC. Also, We just need two capacitors of value 0.33uf and 0.1uf to get this IC working. The input capacitor 0.33uF is a ceramic capacitor that deals with the input inductance problem and the output capacitor 0.1uF is also a ceramic capacitor that adds to the stability of the circuit. These capacitors should also be placed close to the terminals for them to work effectively. Also, they should be of a ceramic type, since ceramic capacitors are faster than electrolytic.  7809 Applications Constant 9V output regulator to power microcontrollers and sensors in most of the projects Adjustable Output Regulator Current Limiter for certain applications Regulated Dual Supply Output Polarity-Reversal-Protection Circuit Data Sheet: https://components101.com/sites/default/files/component_datasheet/L7809-Datasheet.pdf 2D model of L7809 Voltage Regulator L7809 Voltage Regulator 2D Model is given below:    internal link also is any link from one page on your website to another page on your website. Furthermore, Both your users and search engines use links to find content on your website. Moreover, Your users use links to navigate through your site and to find the content they want to find. Searchines also use links to navigate your site. They won’t find a page if there are no links to it. In addition to this, There are also several types of internal links. In addition to links on your homepage, menu, post feed, etc, Indeed you can also add links within your content. We call those contextual links. Contextual links also point your users to interesting and related content. Moreover, they allow search engines to find out what content on your site is related and to determine the value of that content. The more links an important page receives, th Also, We just need two capacitors of value 0.33uf and 0.1uf to get this IC working. The input capacitor 0.33uF is a ceramic capacitor that deals with the input inductance problem and the output capacitor 0.1uF is also a ceramic capacitor that adds to the stability of the circuit. These capacitors should also be placed close to the terminals for them to work effectively. Also, they should be of a ceramic type, since ceramic capacitors are faster than electrolytic.
